Антенна Cisco AIR-ANT2413P2M-N
41 275 ₽/шт
Цена указана с учётом НДС 22%
Пообщаться с менеджером
Нашли дешевле?
Гарантия 12 месяцев
Характеристики
Производитель
:
Cisco
Описание

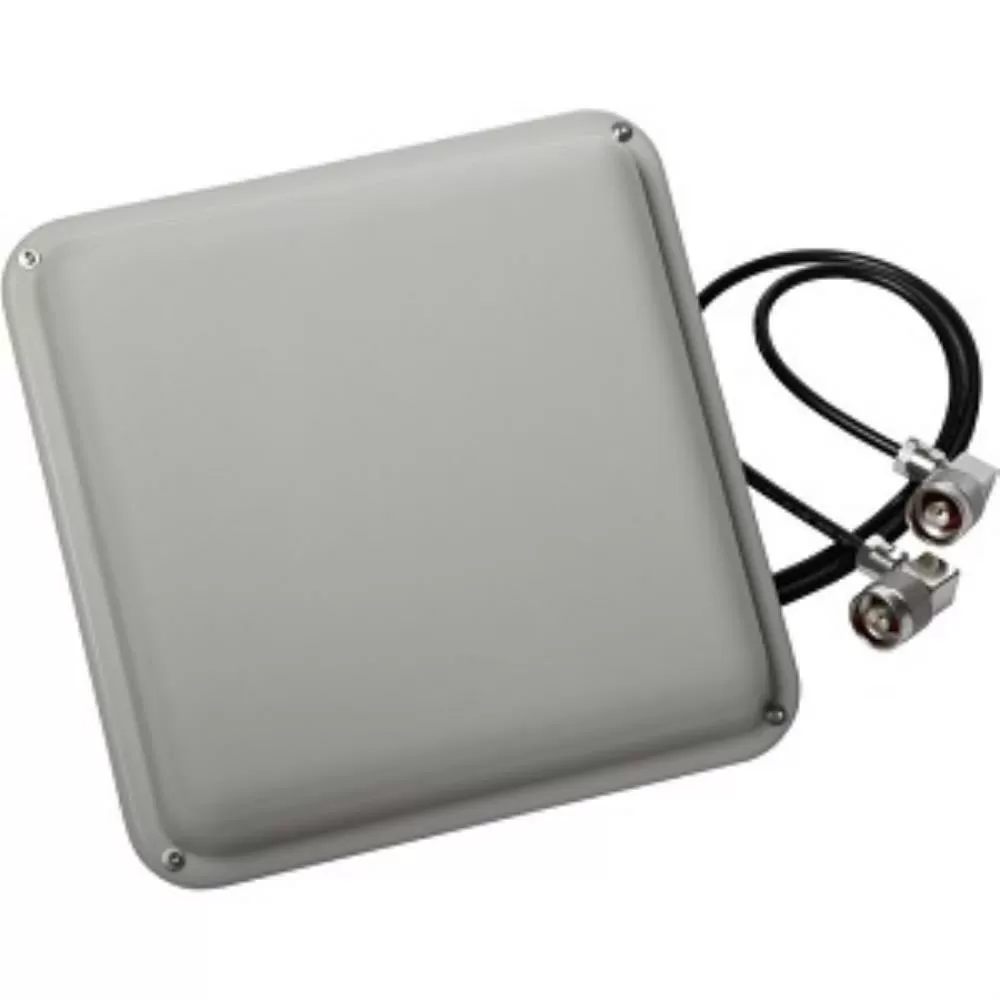

Антенна Cisco AIR-ANT2413P2M-N
Подробности
Арт. AIR-ANT2413P2M-N
Направленная WIFI антенна Cisco AIR-ANT2413P2M-N c коэффициентом усиления 13 дБ, диапазон частот 2,4 GHz
Antenna type 2-Element Patch Array
Operating frequency range 2400 to 2500 MHz
Nominal input impedance 50 Ohms
Peak gain 13 dBi
Polarization Linear, Dual
Elevation plane 3-dB beamwidth 30°
Azimuth plane 3-dB beamwidth 30°
Sidelobe level -20 dBc
Front-to-back ratio 25 dB
Cable length and type 30 in. (76.2 cm)
outdoor rated Coax
Connector type N Male
Antenna type 2-Element Patch Array
Operating frequency range 2400 to 2500 MHz
Nominal input impedance 50 Ohms
Peak gain 13 dBi
Polarization Linear, Dual
Elevation plane 3-dB beamwidth 30°
Azimuth plane 3-dB beamwidth 30°
Sidelobe level -20 dBc
Front-to-back ratio 25 dB
Cable length and type 30 in. (76.2 cm)
outdoor rated Coax
Connector type N Male
